- Steel Standard– IS, ASTM 615, ASTM A 1078, ASTM A775, 854449, AASSITO M254
- Coated Standard- IS, ASTM A775 & A775M
- Ends- Chamfering & Plain Through CNC driven Machine Cut
Fusion Bonded Epoxy Coating commonly referred to as FBE or Epoxy Coating is widely used to protect concrete TMT Bars, Dowel Bars, Cut and Bend TMT Bars, TMT Couplers etc. used in construction. The epoxy coated bars last longer due to the protective film & thereby contribute to the quality of construction.

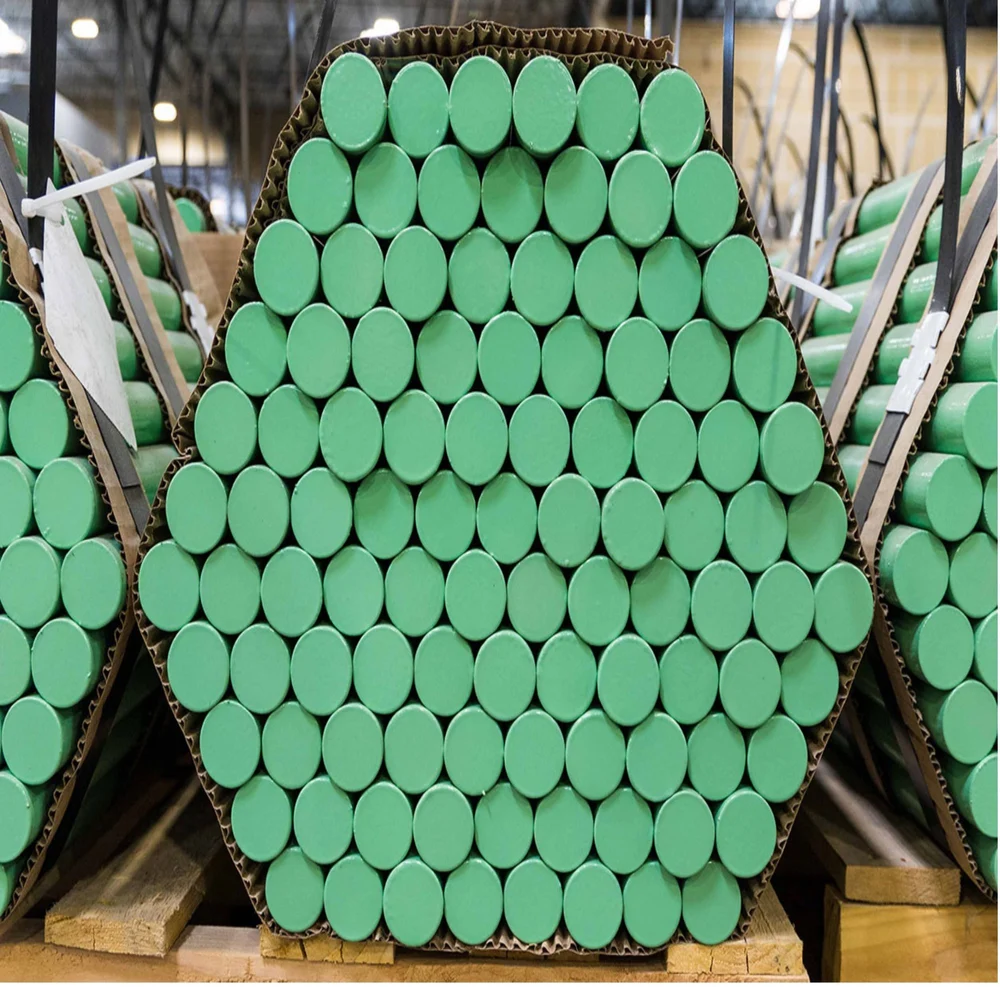

FBE / Epoxy Coated Dowel Bar
We offer FBE / Epoxy Coated Dowel Bars which are highly corrosionresistant, applied as per ASTM A775/775M-07b for concrete structure, which is resistant to Acid, Alkali, especially the Chloride (mainly for Salt). The excellent corrosion resistance of stainless steel rebar and Epoxy Dowel Bars eliminate the risk of structural damage due to rust and the costly refurbishments that can arise as a result. FBE / Epoxy coated Dowel Bars are strongly recommended in coastal areas / cities i.e. Kandla, Dwarka, Porbandar, Veraval, Mumbai, Goa, Mangalore, Puducherry, Chennai, Visakhapatnam etc.
Epoxy Coated Dowel Steel Bars of are most popular for the construction and pavement applications, since they can provide good corrosion resistance while being significantly cheaper than stainless steel.
SPECIFICATION
EPOXY COATED DOWEL BAR SPECIFICATION
- Grade- ASTM A615 Grade 60, Grade 250
- Length- 100 mm to 5000 mm
- Diameter (mm)- 16 50

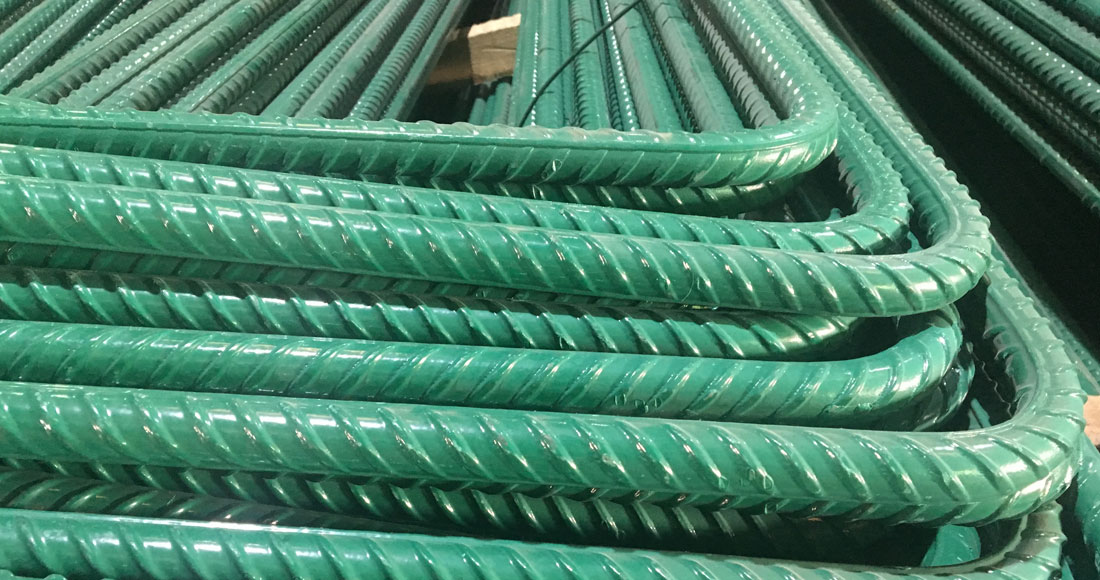

FBE / Epoxy Coated Cut And Bend TMT Bar
The advantage of using factory-cut and bend steel reinforcement bars is realized in labour requirements, machinery requirements, waste steel, time and quality consistency. Finally, since the cutting and bending is carried out by machines, the measurements and consistency in the bending of multiple bars will be spot-on, which a manual process cannot practically achieve. ASTM, ACI-316, BS-4466, BS-8666

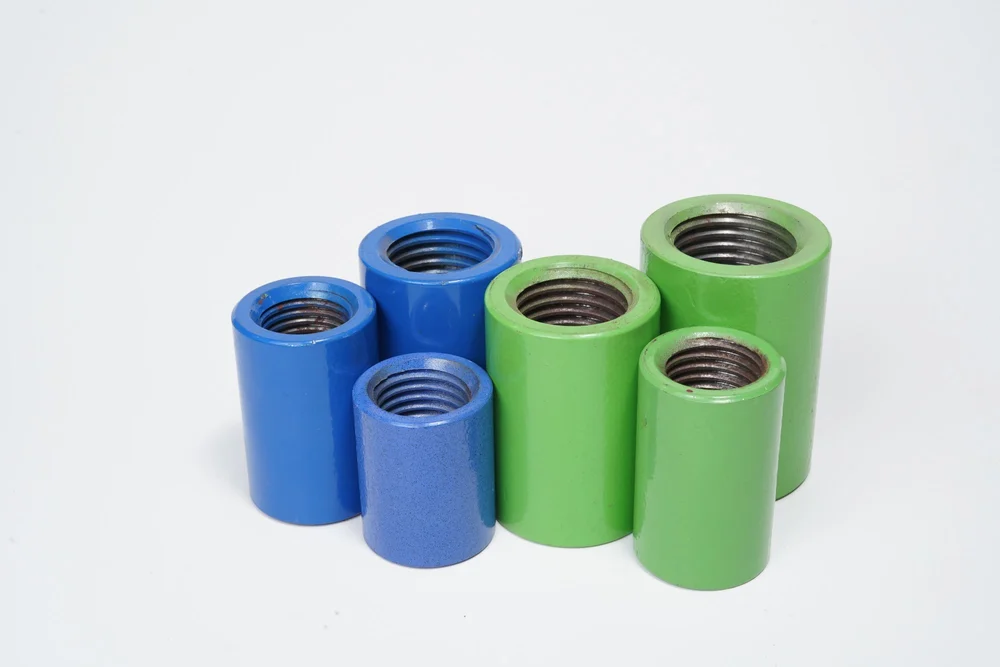

FBE / Epoxy Coated TMT Coupler
Rebar couplers are used in reinforced concrete structures to replace normal rebar lap joints. The couplers are also suitable for use in reinforced concrete columns and walls. Each rebar coupler consists of a piece of rebar equipped with a thread and coupler sleeve at the right end as viewed in the direction of installation.
Rebar coupler can be supplied, suitable for steel bar Dia 12 to 40 mm
Epoxy-coating On Rebar Coupler Is Must In Corrosive Conditions Like Exposure To De-icing Salts Or Marine Waters.
- Bridges (decks, Piers, etc.)
- Pavements (Highway, Airport Runway, etc.)
- Buildings (Seaside, Power Plants, etc.)
- Marine structures (Seaports, Airports, Tunnels, etc.
- Parking structures
